AMP活塞式氣動馬達 Pistos Air Motor
一． 性能參數 Performance apecitication
最大輸出功率的參數 Date Max Power
|
型號
Model
|
功率
Power/(kw)
|
扭矩
Torque/(N/m)
|
速度
Speed/(rpm)
|
耗氣量 Air
Consumption
(m3/min)
|
最大扭矩Max
Torque/(N/m)
|
速度
Speed/(rpm)
|
|
M1
|
0.07
|
0.64
|
1100
|
0.20
|
|
|
|
M3
|
0.18
|
1.37
|
900
|
0.26
|
|
|
|
M5
|
0.37
|
2.94
|
750
|
0.40
|
|
|
|
M6
|
0.55
|
4.4
|
700
|
0.51
|
|
|
|
M7
|
0.88
|
7.8
|
360
|
0.99
|
|
|
供氣壓力 Air Pressure :0.7MPa (7 bar)

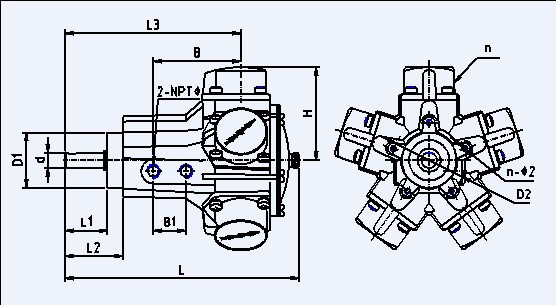

二. 尺寸 Dimensions
|
Model
|
L
|
L1
|
L2
|
L3
|
d
|
B
|
B1
|
H
|
n
|
φ
|
|
M1
|
162.8
|
29.4
|
43
|
116.4
|
12.7
|
37
|
19
|
67.86
|
3
|
1/4
|
|
M3
|
194.74
|
34
|
47
|
138.75
|
14
|
46.25
|
26
|
81
|
3
|
1/4
|
|
M5
|
|
|
|
|
|
|
|
|
5
|
1/4
|
|
M6
|
243.66
|
37.5
|
60
|
183.75
|
16
|
57.75
|
34
|
96
|
5
|
1/4
|
|
M7
|
306
|
42.5
|
58.5
|
211.5
|
19
|
74
|
43
|
134.5
|
5
|
1/2
|
|
